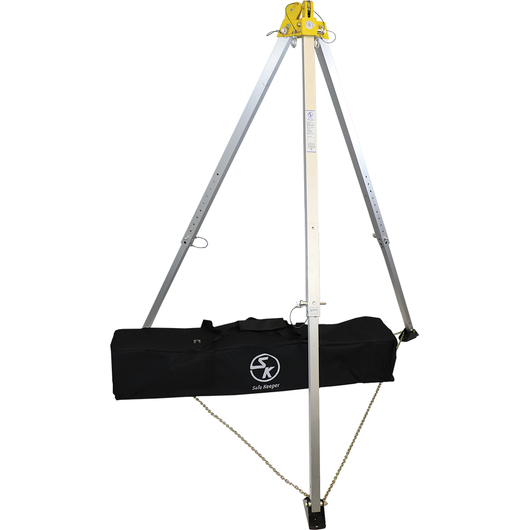

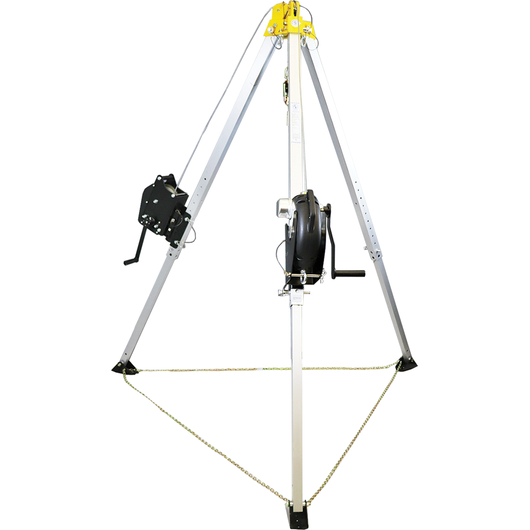

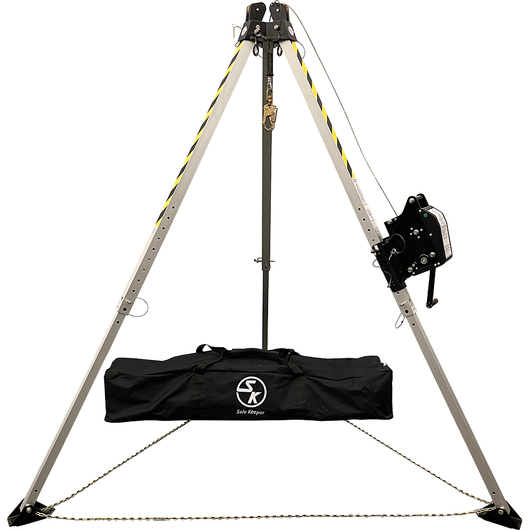

7ft Megapod™ with Dual Pulleys & Carrying Case
Design:
• Adjustable height from 49.21 in. (1.25m) to 88.18 in. (2.24m) from ground level
• At minimum height, distance between legs (foot point) 47.63 in. (1.21m)
• At maximum height, distance between legs (foot point) 78.74 in. (2m)
• Adjustment achieved by sliding telescopic legs (inner and outer)
• Locking pins attached by SS cables
• Securely connected two eye-bolts to be used for connection to personal protective equipment
• Two pulley system provided to pass the wire rope of winch mounted on one leg and retrieval block on the other leg simultaneously
Load Capacity:
• 310 lbs. (as per ANSI Z359.1-2007)
Tripod Legs:
• Material: prime quality aluminum alloy
• Finish: anodized
Head:
• Material: prime quality aluminum alloy
• Finish: powder coated
Locking Pins:
• Material: prime quality aluminum alloy eye bolt and stainless steel locking pin
• Finish: de-burred and polished
Weight:
• 41.9 lbs. ± 0.22 lbs.
Applicable Standards:
• Meets or exceeds ANSI Z359.1-2007 and EN 795:2012 Type B

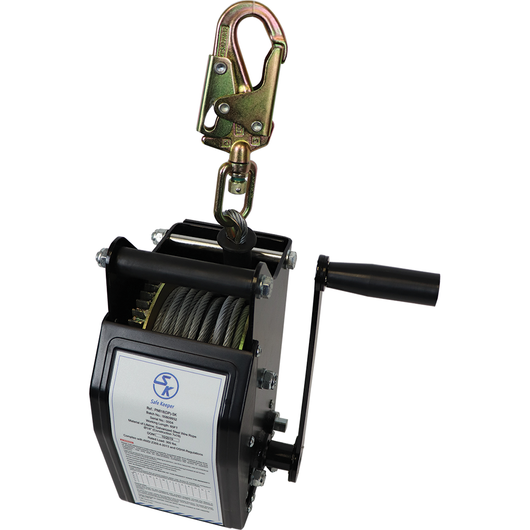

50ft Cable Rescue Self-Retracting Lifeline
Design:
• Material or man lifting rescue winch
• Comes with independent reel mode for quick and easy installation
• Equipped with a secondary brake mechanism that reduces the dynamic load impact felt by the user in the event of a fall
• Mounting plate having four bolts for mounting to davit arm DA 01, DA 02, DA 03, DA 04, SA 17 and PN 800/PN 800A with use of specialized brackets
• Galvanized steel wire rope of 1/4 in. and length of 65 ft.
• Equipped with swivel steel snap hook (PN 162) as a connector
• Handle rotating mechanism for lifting or lowering
Body:
• Material: alloy steel
• Finish: ED coated (black)
Rated Load Capacity:
• 300 lbs.
Weight:
• 36.57 lbs. ± 0.02 lbs.

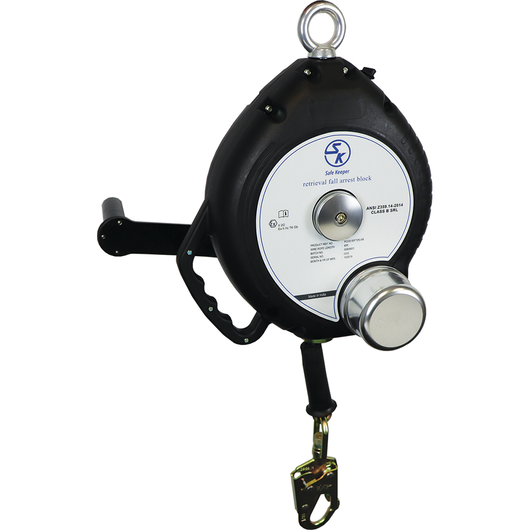

50ft Cable Rescue Self-Retracting Lifeline
Design:
• Retrieval fall arrester block in polymer casing coupled with hoisting winch
• The locking pin on the side of the casing at the base of the handle allows the dual system to work in independent fall arrest and winch modes
• Robust and durable plastic casing
• Has swivel anchorage eye at anchorage end
• Swivel steel snap hook with load indicator (PN 144) at the attachment end
• Galvanized steel wire rope
Length:
• 50 ft. (Maximum)
Cable:
• Material: galvanized steel wire rope 3/16 in.
Breaking Strength:
• 3,400 lbs. (Minimum)
Weight:
• 20.30 lbs. ± 0.02 lbs.
Applicable Standards:
• Meets or exceeds ANSI Z359.14-2014 SRLR & OSHA COMPLIANT
User Manual - Tripod
User Manual - Rescue Winch
User Manual - Self-Retracting Lifeline
Also Included:

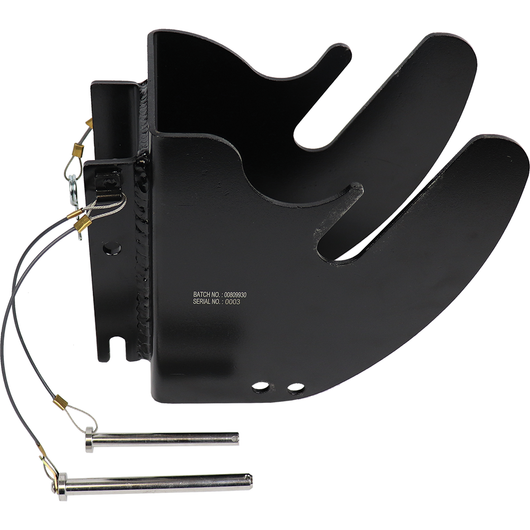

-Part Number: SA17(26) Bracket-SK - Universal Mounting Bracket for 50′ 3-Way SRL (Fits 7′ Megapod™)

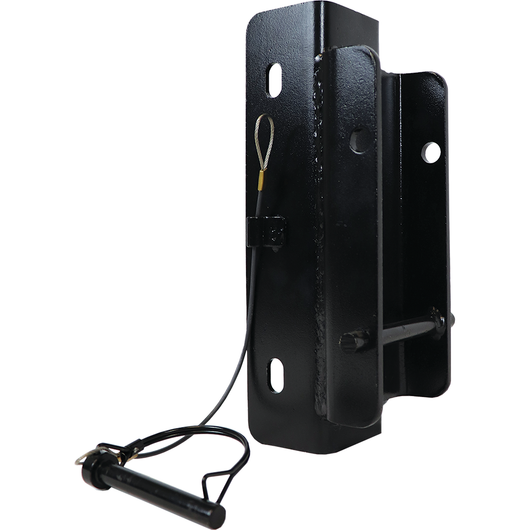

-Part Number: SA17(25) Bracket-SK - Bracket for Rescue SRL (Fits 7ft Megapod™)
